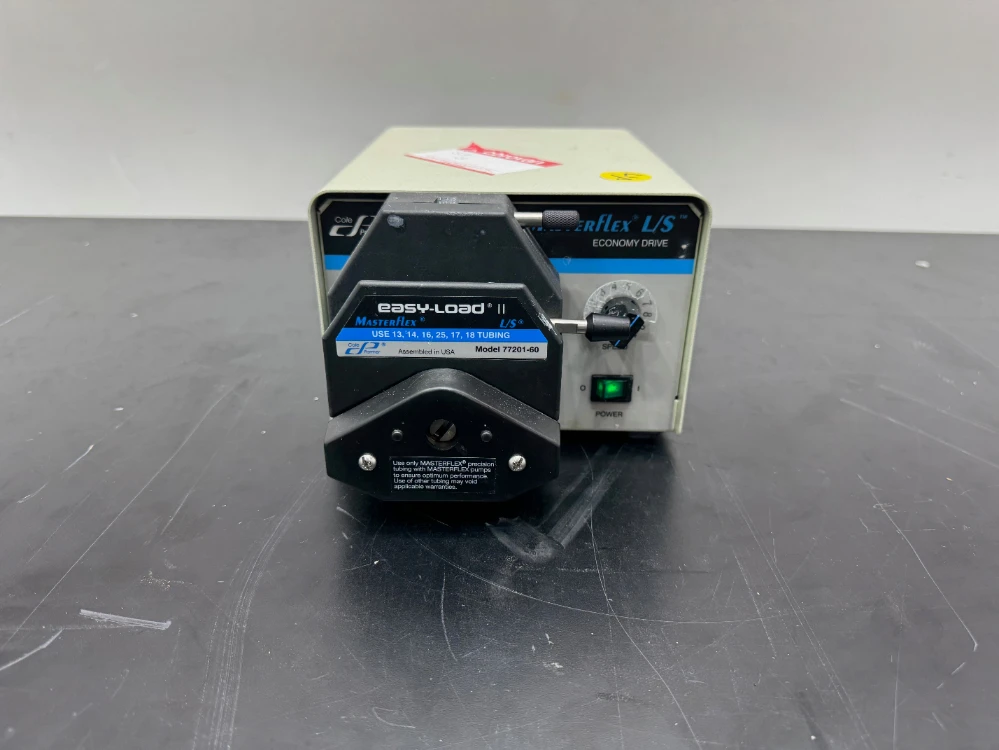

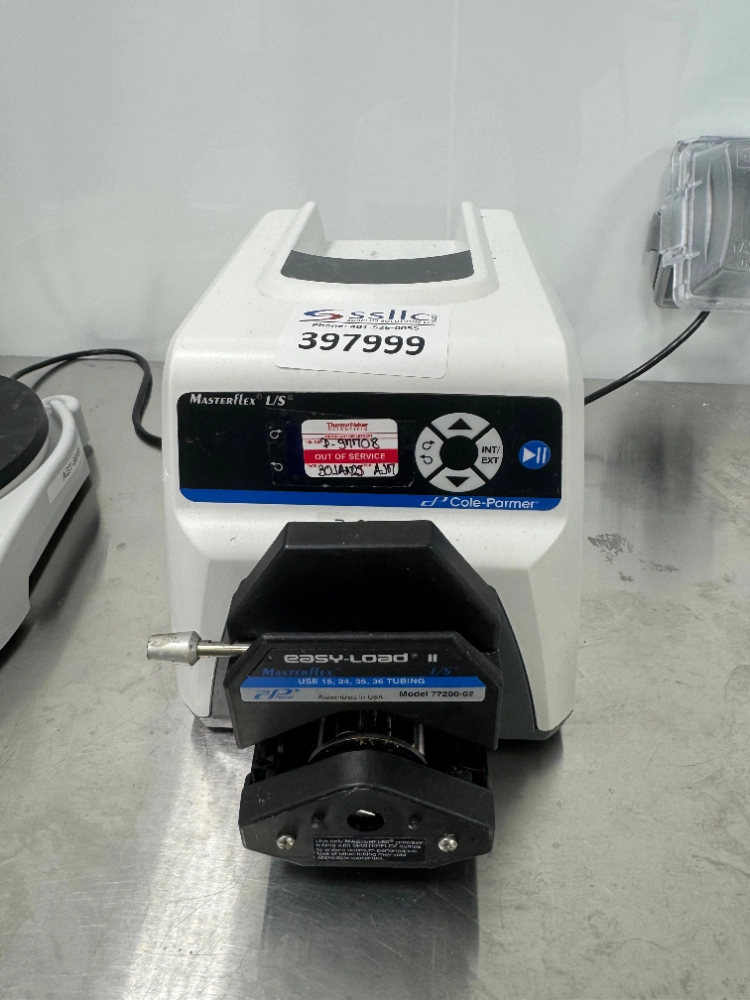

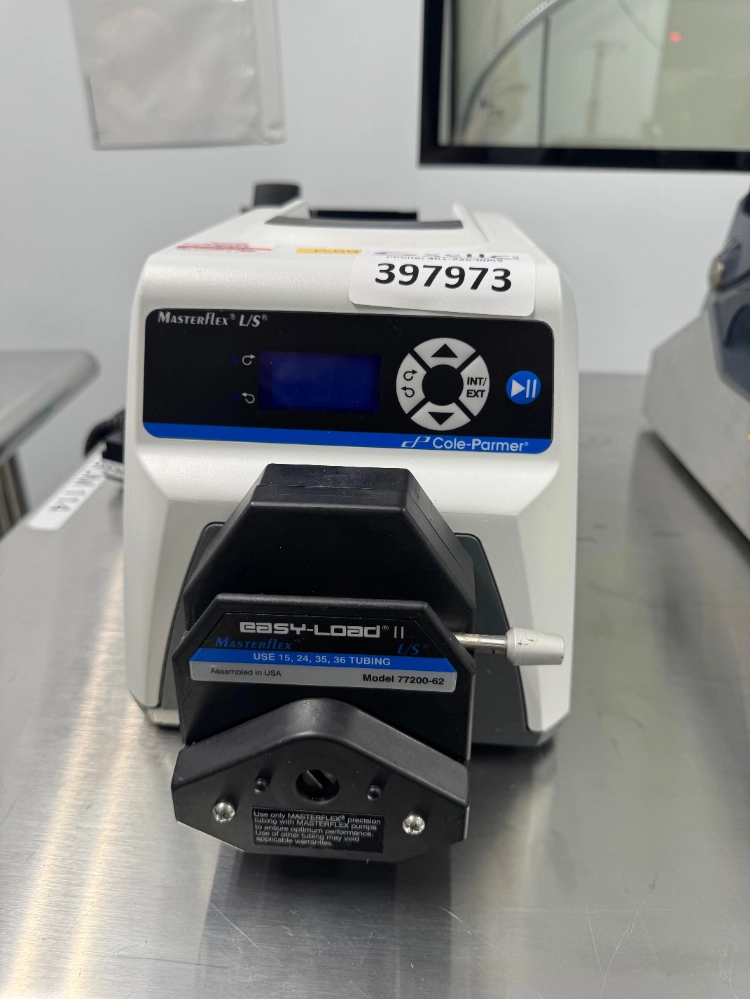

Masterflex Easy Load II 77200-60

This L/S EASY-LOAD II Pump Head, when combined with a MASTERFLEX L/S drive or compatible system, is designed to provide a simple, easy-to-use peristaltic pump system. The pump head accepts several different tubing sizes for a wide range of flow rates. The unique over-center cam design and automatic tubing retention allow quick tubing changes and greatly reduced maintenance time.Each pump is supplied complete with a 15 in (38-cm) length of tubing, one mounting hardware package and this manual.A flat-bladed screwdriver or Phillips is required to complete installation Features: Type: L/S Easy-Load II, Max flow rate: 2300 mL/min (at 600 rpm with L/S 18 tubing), Min flow rate: 0.06 mL/min (at 1 rpm with L/S 13 tubing), Accepted tubing: L/S 13, L/S 14, L/S 16, L/S 25, L/S 17, L/S 18, mL/rev: Depends on tubing selected., Occlusion: Fixed, Rollers: Four; stainless steel, Rotor material: Stainless steel, Housing material: Polyphenylene sulfide, Dimensions: 5"W x 4-3/4"H x 2-3/4"D (12.7 x 12.1 x 7.0 cm), Automatic tubing retention: Yes,
