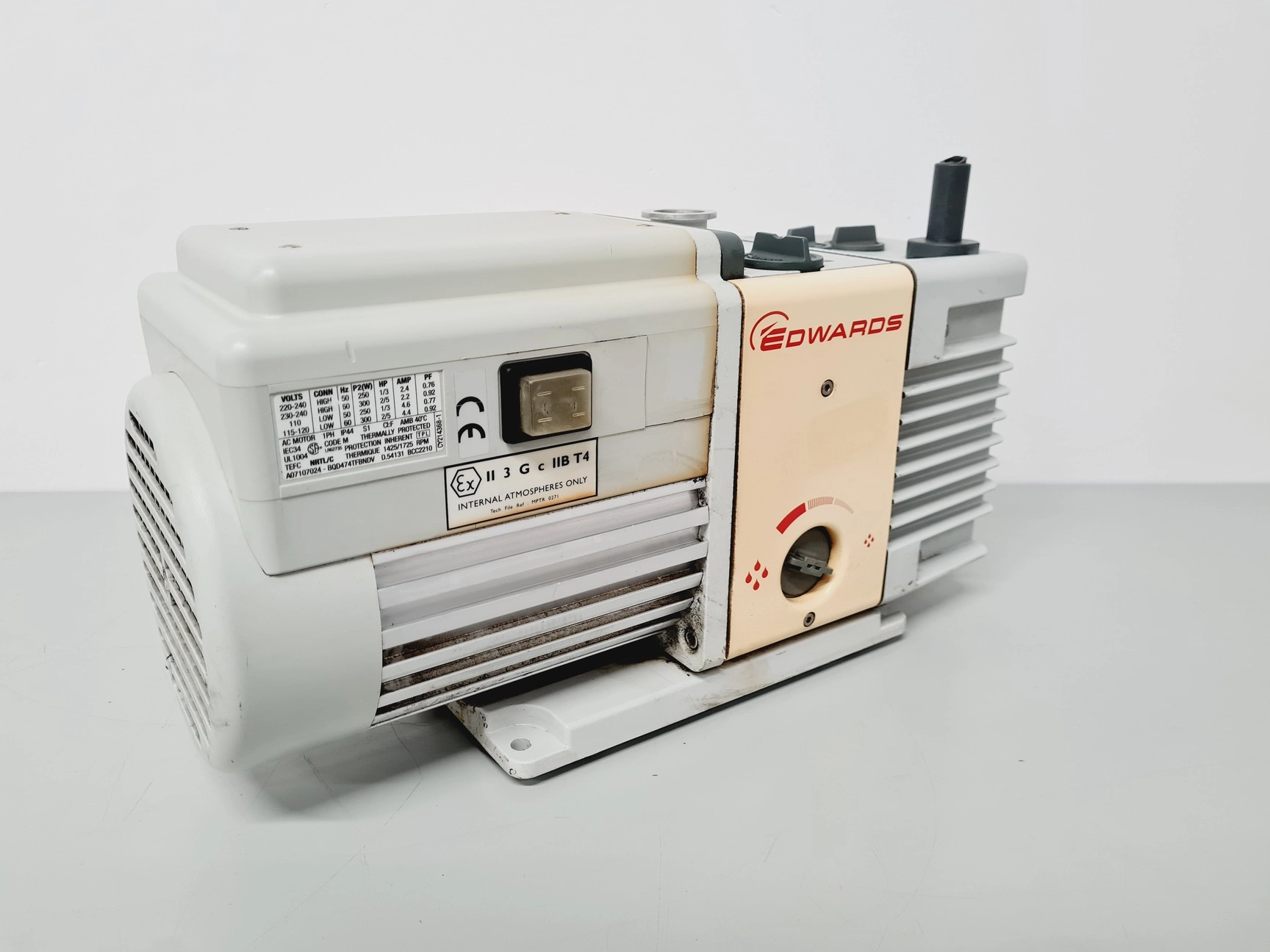

Edwards E2M1.5 Vacuum Pump

Ultimate Vacuum

0.003 mbar

Peak Pumping Speed

1.2 CFM

Water Vapour Tolerance

15 mbar

Features

Renowned for high ultimate vacuum, rapid pumping speed, and quiet operation

Versatile for laboratory and light industrial applications, handling vapour efficiently

Offers displacement (swept volume) of 1.8 m³/h at 50 Hz and 2.2 m³/h at 60 Hz

Achieves an ultimate vacuum of 3 x 10^-3 mbar without gas ballast and 2.5 x 10^-2 mbar with gas ballast

Features convenient inlet and outlet connections, including an NW10 flange and a removable nozzle

Equipped with a motor power of 0.16 kW, operating at 2800/3400 rpm for 50/60Hz

Operates within a temperature range of 12 - 40 °C, with a noise level of 54 dB(A) at 50 Hz

Compact and portable, weighing 10 kg (22 lb.), and has an oil capacity of 0.2 to 0.28 litre

The EM range of oil‑sealed rotary pumps – renowned for their high ultimate vacuum, rapid pumping speed, quiet operation and ability to handle vapour – have become the industry standard for laboratory and light industrial applications. The pump is a freestanding unit with the drive provided through a flexible coupling by either a single‑phase or three‑phase (four pole) motor. The Edwards E2M1.5 Vacuum Pump is discounted, brand-new, and includes manufacturer warranty.

INCLUDED:

The Edwards E2M1.5 Vacuum Pump includes:

> 1 Year Full Parts and Labor Warranty

> Edwards Ultragrade Performance 15 Oil

> Power Cord

> Manufacturer's Documentation

> Operator's Manual

Edwards E2M1.5 Vacuum Pump Technical Specifications

Displacement (swept volume) :
50 Hz :	1.8 m3h-1 / 1 ft3min-1
60 Hz :	2.2 m3h-1 / 1.3 ft3min-1
Speed (Pneurop 6602) :
50 Hz :	1.6 m3h-1 / 0.8 ft3min-1
60 Hz :	2.0 m3h-1 / 1.2 ft3min-1
Ultimate vacuum (total pressure) :
without gas ballast :	3 x 10-3 mbar / 2.3 x 10-3 Torr
with gas ballast :	2.5 x 10-2 mbar / 1.9 x 10-2 Torr
Inlet connection :	NW10 flange
Outlet connection :	Nozzle 11 mm external diameter removable from 3/8 inch BSP tapped hole
Maximum permitted pressure at outlet :	0.5 bar gauge / 7 psig
Maximum inlet pressure for water vapour :	15 mbar / 11 Torr
Maximum water vapour pumping rate :	16 gh-1
Motor power 50/60 Hz (IP54) :	0.16 kW
Nominal rotation speed 50/60Hz :	2800/3400 rpm
Power connector :	IEC EN60320 C13
Operating temperature range :	12 - 40 °C
Weight :	10 kg / 22 lbs
Noise :	54 dB (A) @ 50 Hz
Noise with acoustic enclosure :	47 dB(A) @ 50Hz
Oil capacity - max :	0.28 litre
min :	0.2 litre
Recommended oil :	Ultragrade 15
Electrical Requirements :	100-120V, 50/60Hz

Downloads

Technical Specification Download

Operator's Manual Download

Typically Ships Within: 1 Business Day
